| ブランド名: | Future Tech |
| モデル番号: | YWFL300W |
| Moq: | 交渉可能 |
Powerful and Energy-Efficient LED Flood Light for Industrial and Outdoor Applications with silver.
High power flood light, using LUMILEDS SMD3030 LED, high transmission radiator. It can be widely used in energy-intensive, large
amount electricity, long time using electricity environment. It can solve industrial waste electricity effectively.
Product Attribute
1.Adopts SMD source design, high thermal conductivity, low lumens depreciation and uniform light color
2.High PFC, Long lifespan >50,000 hours, low carbon and lead free
3. Resistance to fluctuation
4. Protection with short circuit, over current, over voltage and over temperature
5.100% full capacity aging testing
6. Instant start-up
7. Excellent appearance design, easy installation, easy disassembly, and wide application
Installation should be done by professional electricians.
1.Please make sure all power is turned off before installation completed.
2. Please ensure the power supply wire grounding is normal.
3.Please ensure the hook tighten well.
4.When connecting wires, don’t make any frictions or drop off the product, otherwise will cause damage.
5.Be sure to install the lights correctly, the power cord bare wire must be connected with insulation protection.
6. When connecting wires, should clearly know Neutral wire , Earth wire and Live wire to assure safety. After examination,
switch on.
7. Don‘t cover anything on or touch the emitting section and the heat sink during lighting.
8.The luminaries should be positioned so that prolonged staring into the luminaries at a distance closer than 3 m is not
expected.
| Parameter | 300W |
| Color | Silver |
| Max. Power | 300W |
| Luminous Flux | 45,000 LM |
| Luminous Efficiency | 150 LM/W |
| Beam Angle | 15°/30°/60°/90°/70°x140° optional |
| CCT | 3000-6500K optional |
| LED Chip | Philips LUMILEDS SMD3030 |
| LED Chip Quantity | 360 pcs |
| Driver Efficiency | >0.93 |
| CRI | Ra≥70 |
| Heat Sink Material | AL (Aluminum) |
| IP Code | IP66 |

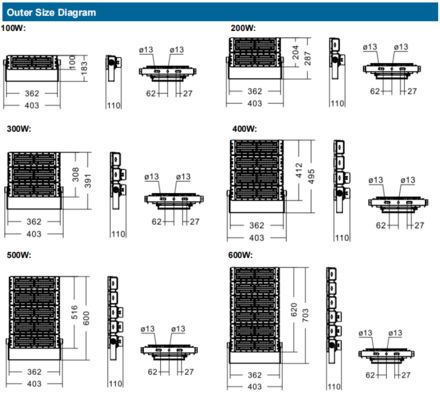

| Light Size | 403110391 mm |
| Weight (N.W.) | 7.5 kg |
| Life Span | >50,000 hours |
| Warranty | 5 Years |
| Driver | Meanwell/Philips/Osram/Lifud/Sosen/Moso/Done/Standard Rectangle Driver optional |
